1：How to Design a Good 1MW Grid-Connected Solar Power Generation System?

Designing a 1MW (megawatt) grid-connected solar power generation system involves several steps and technical considerations. Below is a basic design process and key points:

1. Determine Project Requirements

• Location Selection: Consider geographical location, solar irradiance, climatic conditions, etc.
• Target Capacity: In this case, it’s 1MW.

2. System Component Selection

• PV Modules: Choose suitable solar panels based on budget and efficiency. Typically, monocrystalline or high-efficiency polycrystalline modules are preferred.
• Inverters: Select appropriate grid-tied inverters whose power matches the system’s total output, considering conversion efficiency.
• Mounting Systems: Fixed or tracking systems; the latter can increase daytime power generation but at a higher cost.
• Cables and Other Electrical Equipment: Including DC cables, AC cables, circuit breakers, lightning protection devices, etc.

3. Layout Planning

• Design layout according to available space, ensuring that PV modules do not shade each other and optimizing tilt angles for maximum sunlight reception.

4. Grid Connection Scheme

• Analyze local grid conditions to determine the optimal connection point and method. Compliance with national or regional grid codes and technical requirements is necessary.

5. Economic Analysis

• Conduct investment return analysis, calculating initial investment costs, operational and maintenance expenses, and expected returns.

6. Regulatory Compliance

• Adhere to all relevant laws and regulations, including but not limited to environmental protection rules, building codes, and power industry standards.

7. Implementation Plan

• Develop a detailed construction plan covering all stages from design to installation and commissioning.

8. Post-Installation Maintenance

• Regularly inspect system status, clean panels, monitor performance metrics, and promptly repair faulty parts.

This process may require collaboration across multidisciplinary teams, including electrical engineers, structural engineers, project managers, etc. Each step needs careful planning and execution to ensure the safety and economic viability of the system. In practice, it’s also important to consider the latest technologies and market dynamics to make the most optimized design decisions.

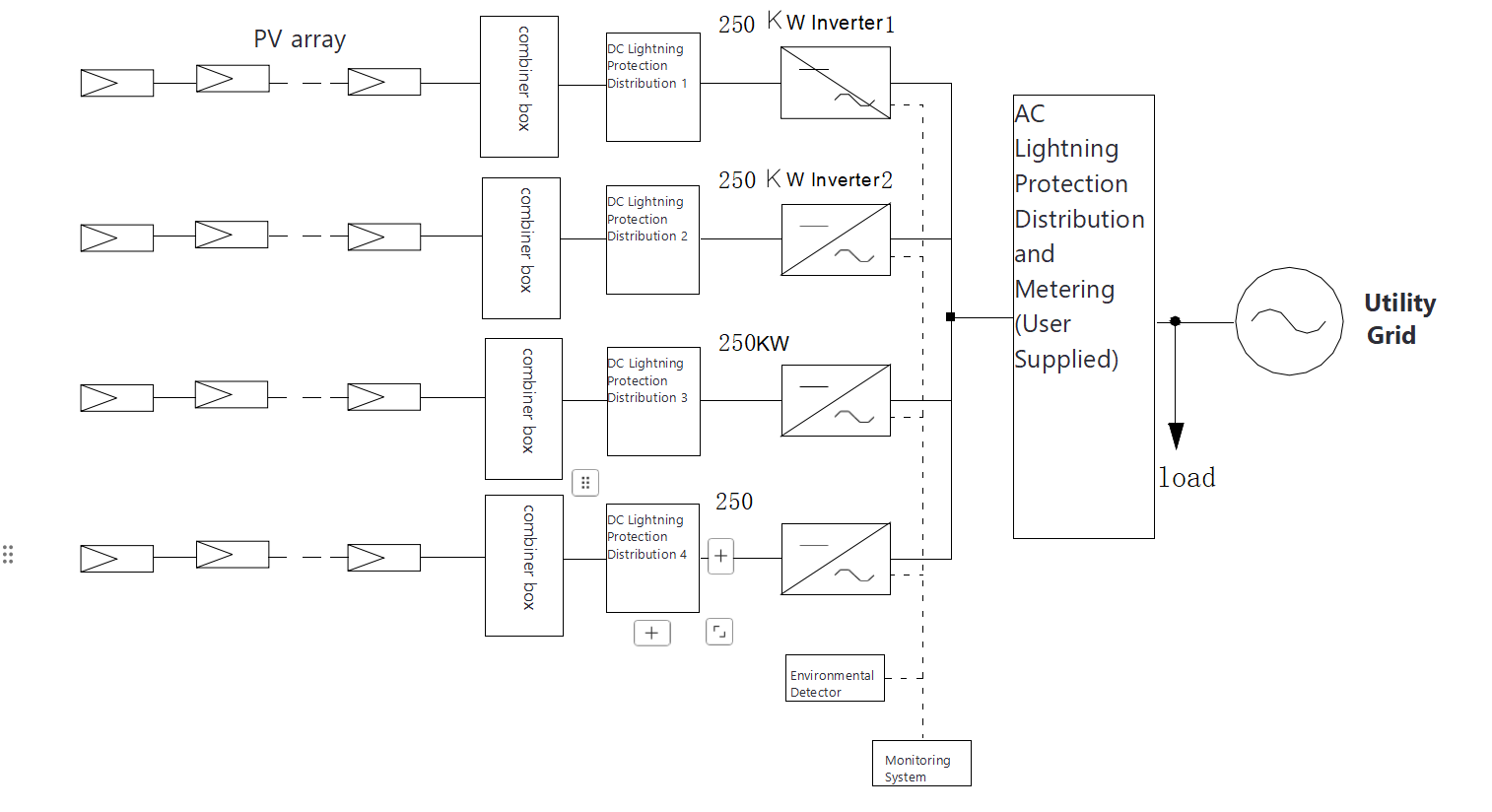

• Overall Design Scheme One
