CMP12-10A Solar charging regulator

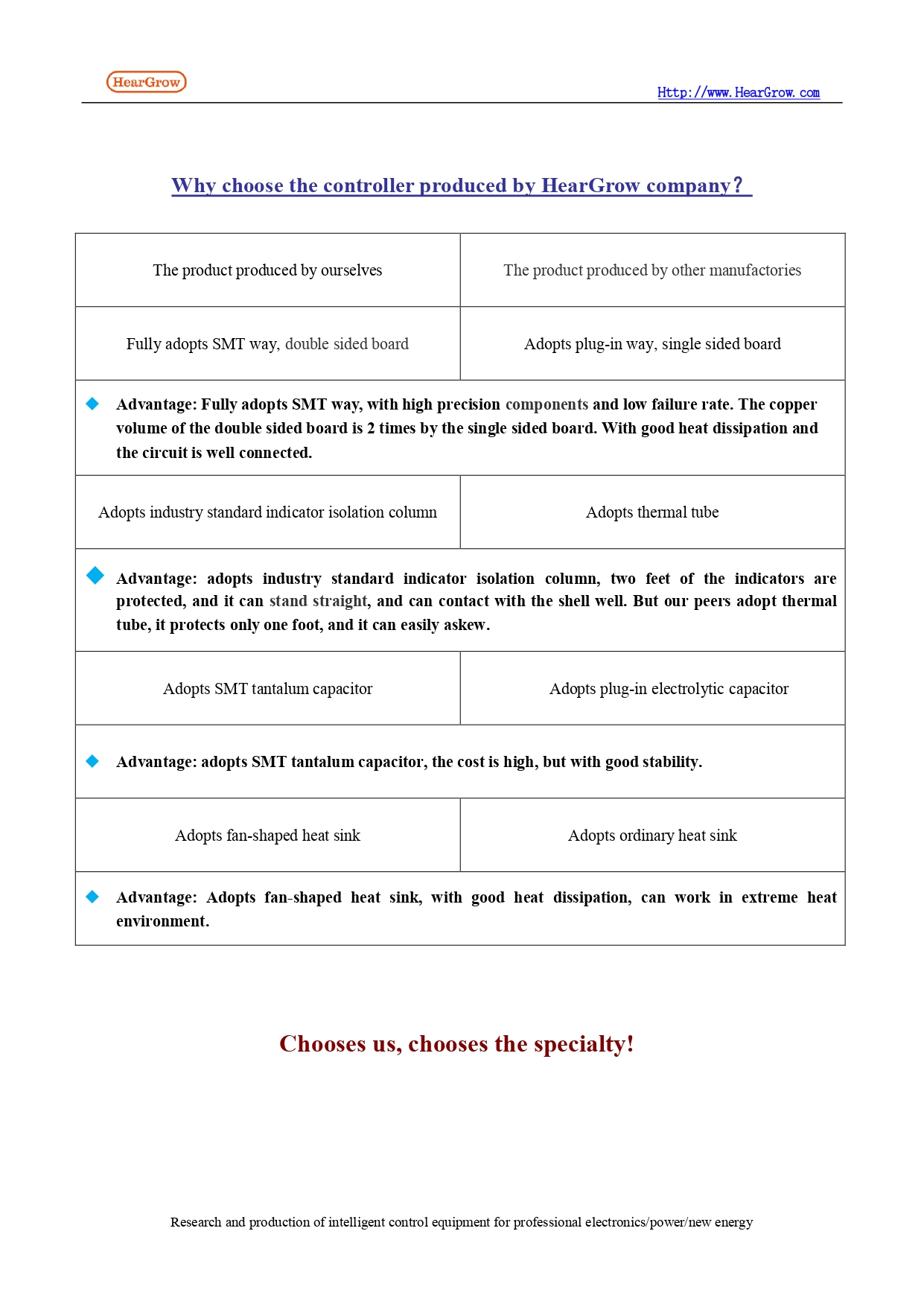

This solar charge controller is the new patent product of our company. It is used to control solar panel and battery in solar system automatically.

Here is the Solar Panel Configuration list (12V / 24V)

Voltage: 12V/24V

□05A: 60W/120W      □15A: 180W/360W

□10A: 120W/240W     □20A: 240W/480W

Ⅰ. FUCTION

1. Over-load protection
2. Short circuit protection
3. Reverse discharging protection
4. Under-voltage protection
5. Over-charging protection

Ⅱ. CONNECTION (AS INDICATED IN DIAGRAM)

Open the top cover of controller and connect the wire with terminals follow the diagram on the top cover of it.

1. Connect the “+”, “-” poles of the battery to the corresponding ports of controller (the third and the fourth one from left).

* The subsequent operation can be processed only if the battery indicator (Battery) is lighting (means it is well connected). Otherwise, the subsequent operation will damage the controller.

2. Connect the “+”, “-” poles of the solar panel to the corresponding ports of controller (the first and the second one from left).

* If a connection error can damage your controller.

3. Connect the “+”, “-” poles of the load to the corresponding ports of controller (the fifth and the sixth one from left).

Ⅲ. INDICATOR LED

1. Charge LED is used to indicate the charging status of battery. Lighting is in-charging mode, flickering is floating charge mode. LED turn off means charging stopped.
2. There is output and load can work if the Load LED is lighting. There isn’t output and the load cannot work if Load LED off.
3. Only when ④ the Battery Normal indicator or ⑤ Battery Full indicator constant ON, ② the load can be work.

Notice:

1. Please make sure the rated voltage of solar panels, batteries the loads are same. All of them should be 12V or 24V.
2. The rated current of solar panels and load must be less than the rated current of controller.

Ⅳ. TECHNICAL PARAMETER

*Parameters may customized by customers.

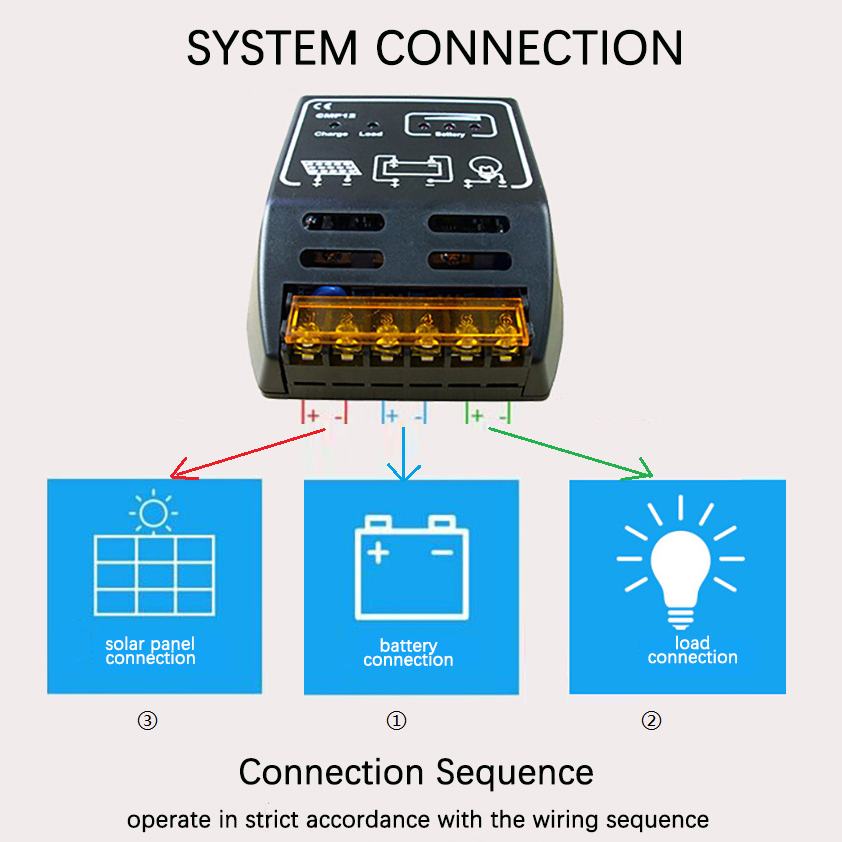

                                Connection Diagram
